- Material:5637212
- Model:PS10-32B-6T-N-15/ SEQUENCE VALVE
- Summary:SEQUENCE VALVE
Quantity in stock: 0

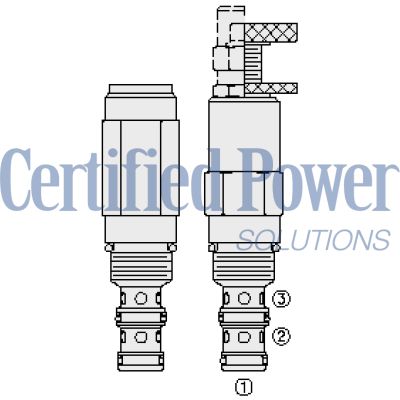

The Hydraforce 5637212 (5637212) is a screw-in, cartridge-style, direct-acting, spool-type hydraulic sequence valve. It features an external pilot and internal spring chamber drain, designed to direct flow to a secondary circuit once a predetermined pressure level is reached in the primary circuit. In its steady state, the PS10-32 blocks flow from port 3 to port 2. When a predetermined pressure is achieved at port 1, the valve shifts to open port 3 to port 2. The spring chamber is vented at port 2, meaning that back pressure at this port will directly (1:1) influence the valve's setting. This product includes adjustments that cannot be backed out of the valve and prohibits springs from going solid, ensuring durability and reliability in operation. Additionally, it offers optional spring ranges up to 144.8 bar (2100 psi). The valve is constructed with a hardened spool and cage for extended life and fits an industry-common size for versatile application across various systems requiring precise hydraulic control.
Unit weight:
0.25 kg (0.56 lb)
PS10-32A
0.29 kg (0.65 lb)
PS10-32C PS10-32L
0.28 kg (0.61 lb)
PS10-32B
0.24 kg (0.54 lb)
PS10-32F PS10-32H
Internal wetted surface area:
148 cm² (22.9 in²)
PS10-32A PS10-32B PS10-32C PS10-32L
163 cm² (25.2 in²)
PS10-32F PS10-32H
| Ratings | Pressure Ratings Pressure rating: 206.8 bar (3000 psi) Proof pressure: 482.6 bar (7000 psi) Burst pressure: 688.5 bar (14000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port 2 Flow Ratings Flow rating: 30.3 lpm (8 gpm) Maximum internal leakage: 82 ml/min (5 in³/min) At ΔP 2 to 3 206.8 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H style plug torque: 33.9 N-m (23 to 25 ft-lb) Maximum allowable torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PS10-32F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 01 2.41 to 8.62 bar (35 to 125 psi) Spring Range R 04 3.45 to 27.6 bar (50 to 400 psi) Spring Range R 08 5.5 to 55.2 bar (80 to 800 psi) Spring Range R 15 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 21 14.5 to 114.8 bar (210 to 2100 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-TB
X=seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
