HYDRAFORCE
5191002
$15.75 USD
- HYDRAFORCE
- Material:5191002
- Model:CV04-20-0-P-05 CHECK VALVE
- Summary:CHECK VALVE
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

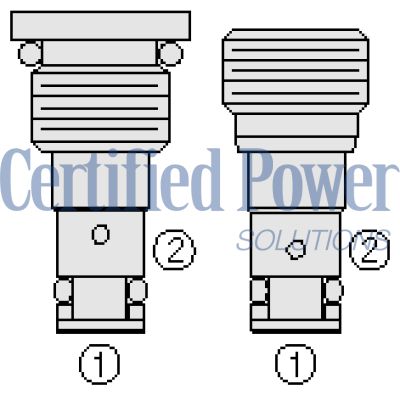

The Hydraforce 5191002 (5191002) is a screw-in, cartridge-style hydraulic check valve designed primarily for use as a blocking or load-holding device in various hydraulic systems. The CV0420 model facilitates the flow of hydraulic fluid from port 1 to port 2, while typically preventing flow in the reverse direction. This functionality is critical in applications requiring one-way flow to maintain system pressures and prevent potential damage due to backflow. The valve features a fully guided check mechanism which is spring-biased to remain closed. It only opens when sufficient pressure is applied at port 1, allowing fluid to pass through to port 2 efficiently and securely. This precise operation ensures reliability and performance in maintaining system integrity and responsiveness. The design and build of the CV0420 make it suitable for integration into sophisticated hydraulic circuits where robust control of fluid direction is necessary.
The Hydraforce 5191002 (5191002) is a screw-in, cartridge-style hydraulic check valve designed primarily for use as a blocking or load-holding device in various hydraulic systems. The CV0420 model facilitates the flow of hydraulic fluid from port 1 to port 2, while typically preventing flow in the reverse direction. This functionality is critical in applications requiring one-way flow to maintain system pressures and prevent potential damage due to backflow. The valve features a fully guided check mechanism which is spring-biased to remain closed. It only opens when sufficient pressure is applied at port 1, allowing fluid to pass through to port 2 efficiently and securely. This precise operation ensures reliability and performance in maintaining system integrity and responsiveness. The design and build of the CV0420 make it suitable for integration into sophisticated hydraulic circuits where robust control of fluid direction is necessary.
Unit weight:
0.01 kg (0.03 lb)
Internal wetted surface area:
16 cm² (2.5 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: 7.6 lpm (2 gpm) Maximum internal leakage: 0.10 ml/min (2 drops/min) At 241 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gcv04-20) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:

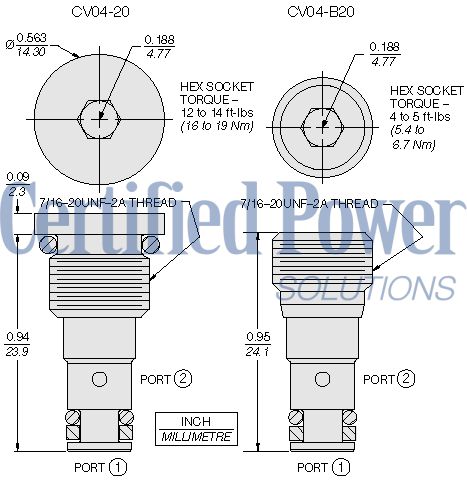

VC04-2 04-size-2-way Cavities Cartridge installation torque: 16.3 to 19.0 N-m (12 to 14 ft-lb) Maximum allowable torque: 27.1 N-m (20 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION CV04-20-H-J-R H Line Body H 0 No Body J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 5 5 psi Bias Spring |
Seal kit:
SK04-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
04-2w valve bodies
