- Model:SP12-20S-0-P-00 SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 2 PORT, NORMALLY CLOSED
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

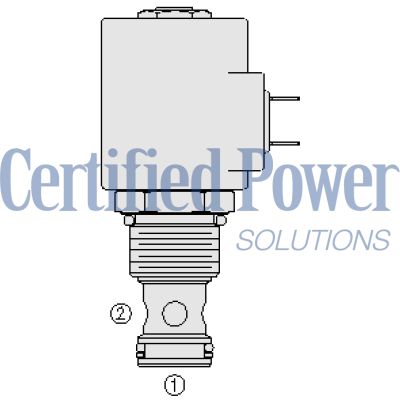

The Hydraforce 5044004P (5044004P) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking and load-holding applications within hydraulic systems. The operation of this valve is characterized by its dual functionality. When de-energized, the 5044004P acts as a check valve, allowing fluid flow from one port to another while blocking the opposite flow direction. Upon energization, the poppet lifts to open up the pathway for fluid flow in the reverse direction. Key features of the Hydraforce 5044004P include its continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance under continuous operational conditions. Additionally, it offers a manual override option which provides an added layer of operational security and flexibility. For environments requiring robust protection against moisture and dust, there are optional waterproof E-Coils available rated up to IP69K. This model also conforms to industry-common cavity specifications, making it compatible with standard installations and replacements. Furthermore, it includes a metering option that allows for precise control of fluid flow, enhancing the application's efficiency in various hydraulic system configurations.
The Hydraforce 5044004P (5044004P) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking and load-holding applications within hydraulic systems. The operation of this valve is characterized by its dual functionality. When de-energized, the 5044004P acts as a check valve, allowing fluid flow from one port to another while blocking the opposite flow direction. Upon energization, the poppet lifts to open up the pathway for fluid flow in the reverse direction. Key features of the Hydraforce 5044004P include its continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance under continuous operational conditions. Additionally, it offers a manual override option which provides an added layer of operational security and flexibility. For environments requiring robust protection against moisture and dust, there are optional waterproof E-Coils available rated up to IP69K. This model also conforms to industry-common cavity specifications, making it compatible with standard installations and replacements. Furthermore, it includes a metering option that allows for precise control of fluid flow, enhancing the application's efficiency in various hydraulic system configurations.
Fluids
Fluids:
Mineral based or synthetic hydraulic fluid with lubricating
properties.
Fluid viscosity range:
7.4 TO 420 cSt
Maximum operating contamination level:
20/18/14 PER ISO 4406
Unit weight:
0.24 kg (0.52 lb)
Internal wetted surface area:
174 cm² (27.0 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Maximum recommended pressure drop: 207 bar (3000 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 5 drops/min At 207 bar (3000 psi) Hysteresis: ≤10% At maximum control curent for flow from 0 to 5.7 lpm (0 to 1.5 gpm) for the standard poppet and 0 to 56.8 lpm (0 to 15 gpm) for the 'A' metering poppet Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With Buna N seals -26 to 204 °C (-15 to 400 °F) With Buna N seals -40 to 100 °C (-40 to 212 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Environmental Ratings Corrosion Protection: 960 hr salt spray per ASTMB117 |
| Performance |   |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Orientation restrictions: None Torque Specs Cartridge installation torque: 44.9 to 50.3 N-m (33 to 37 ft-lb) Maximum allowable torque: 61 N-m (45 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) |
| Order Code | POSITION CODE DESCRIPTION SP12-20DEG-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
| Electrical Specifications | Valve inductance:
188.8 mH At 1.2 A Maximum control current: 1.2 A 12 V coil Threshold current: 0.30 to 0.50 A For standard poppet 0.22 to 0.50 A For 'A' metering poppet Dither PWM frequency: 100 Hz |
Seal kit:
SK12-2X-T
X = Seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
